No more self-rewinding of labels with RW-7
RW-7 Label Rewinder from DTM Print make it easy to unwind and rewind large quantities of labels. More...

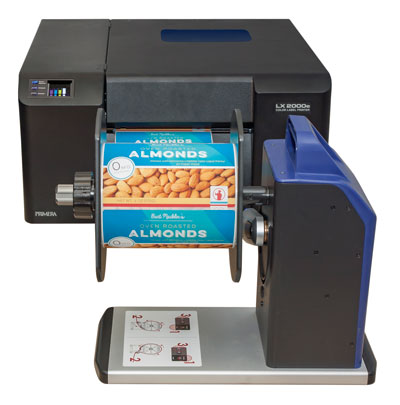

RW-7 is perfect for use with virtually any thermal, thermal transfer and inkjet-based desktop label printer, including Primera’s LX-Series Color Label Printers. The RW-7 rewinds the rolls perfectly tight and straight, there’s no need to rewind it properly by hand.
Tape the printed output onto a 76.2 mm (3″) core.
Drop the dancer arm and start printing. Your labels will be rewound with perfect alignment and just the right amount of tension for either hand application or on a semi-automatic or automatic label applicator.
Rewinding Directions
Features:
- Light-weight dancer arm – for use with virtually any desktop label printer
- Coloured LED indicator provides rewinder operation status
- Gummed dancer arm attracts dust and keeps it away from the label surface
- Won’t cause alignment or print quality problems
- Universal Power Supply – simply change cord set for use in any country
- Modular core adaptor fits 1”, 1.5”, 2“ and 3” core sizes
- Easy assembly lock module for quick and firmly label roll holding
Tehnical specifications:
| Maximum Roll Width: 178 mm (7”) |
| Maximum Roll Diameter: 153 mm (6”) |
| Rewind Speed: Auto mode: 30.48 cm/sec (12”/sec), Fixed mode: Coreless 13.71 cm/sec (5.4”/sec), 1” core diameter 16 cm/sec (6.3”/sec) |
| Core Size: Coreless, 25.4 mm (1”), 38.1 mm x 50.8 mm (1.5x2”), 76.2 mm (3”) |
| Label Roll Weight: 5 kg |
| Rewinding: Label Inside/Label Outside |
| Power Input: 100-240 V AC to 24 V DC, 2 A, 50/60 Hz |
| Weight: 5 kg (11 lbs.) |
| Dimensions (WxHxD): 394 x 303 x 180 mm |
| Storage Temperature: -20°C to 60°C (-4°F to 122°F) |
| Humidity: 10% - 85% non-condensing |
| Certifications: CE, RoHS, TÜV, FCC |
| Compatibility: LX400e, LX500e, LX610e LX900e*, LX910e, LX1000e/LX2000e |
| Garancija: 36 months |
| Manufacturer: DTM Print GmbH |
