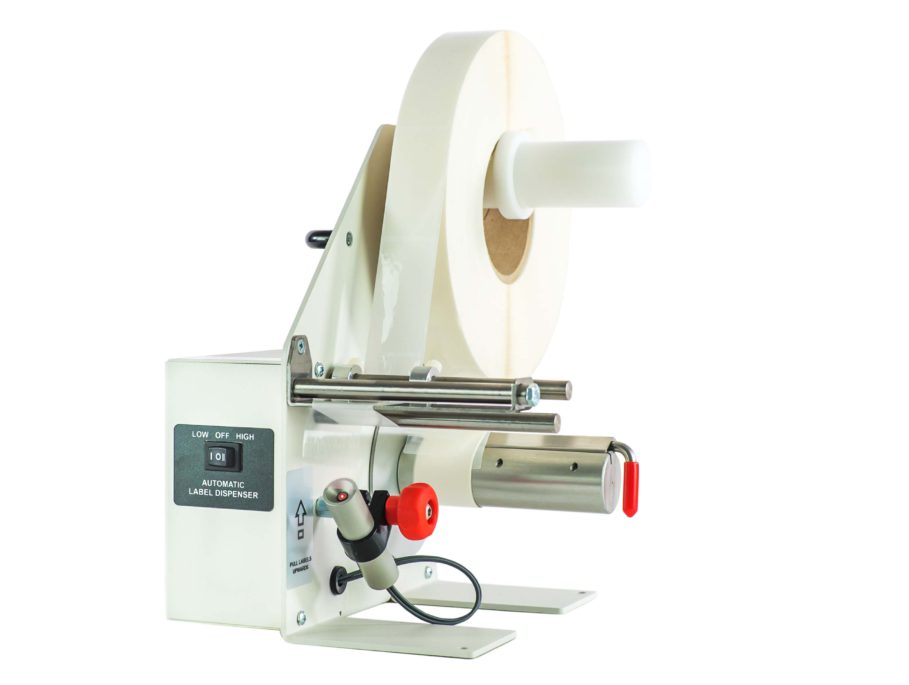

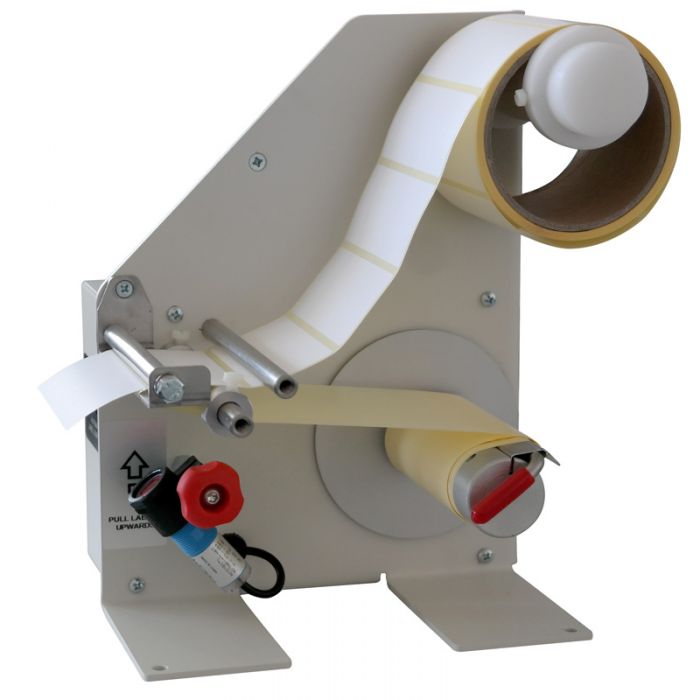

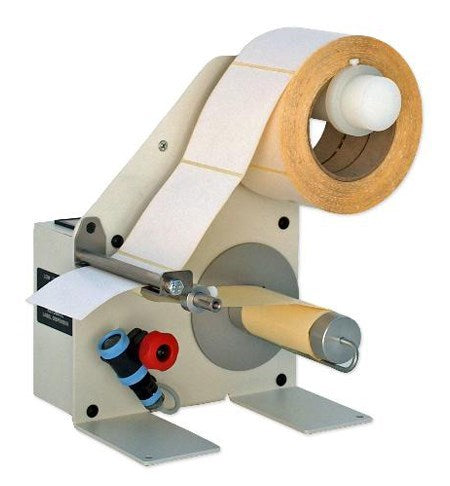

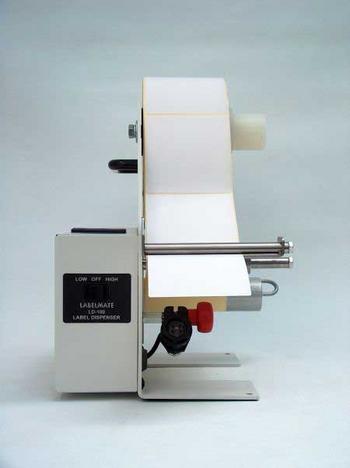

Model LD-100-RS with the latest opto-electronic technology
The LD-100-RS uses a peel and present design with the latest opto-electronic technology to dispense individual labels. The set-up is very easy. In less than 30 seconds, there is just one simple adjustment for label lenght.
A special reflective sensor sits below the label and reliably senses the leading edge of you label. As the operator picks up a label, the next one is automatically and instantly advanced.
Tehnical specifications:
Handles labels: Up to 115mm wide |
Roll diameter capacity: 220 mm (265mm with AWB option and 300 with LD-DE option) |
Label lenght: Od 6 do 150 mm |
Min. speed: 11cm/sec |
Power supply: Input: 220-230VAC, Output: 15VDC-4.33A |
Weight: 8 kg |
Dimensions: 210 × 200 × 270 cm |
Warranty: 1 year |
Proizvajalec: Labelmate BVBA |
